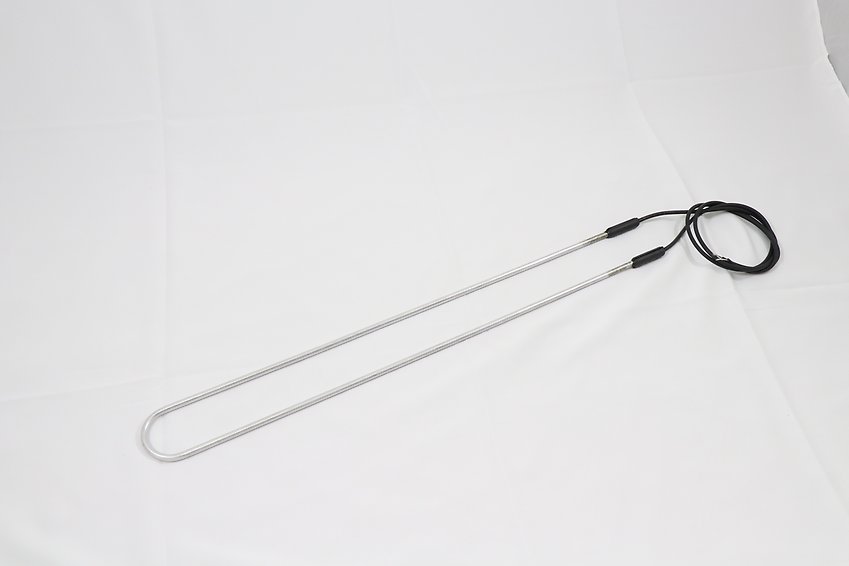

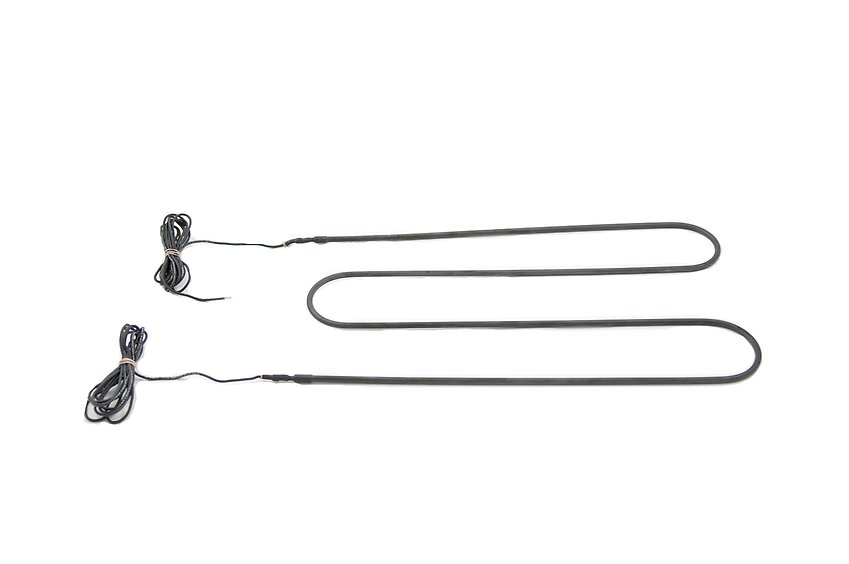

Non-MgO Heaters
The unique construction results in an element with faster response time and lower thermal mass. The heater is surrounded by a metal sheath which contributes to overall proetection and increased mechanical strength. Its ligthweight design allows for easy installation for operators. Customization is available to suit your application with variations in materials and technical specifications.
Our NMH heaters are rated for voltages as high as 600V with a wattage rating maximum of 50 watts per foot. The metal sheath sizes for the round shape group range from a diamter of 0.250 inches to 0.260 inches. We also offer an oval shape with a 0.75 inch diameter that has a 0.25 inch flat base for surface to surface heat transfer.
Our NMH heaters are end sealed with either a heat shrink design or we offer a rubber molded end seal option for water proof applications.
The NMH heater is specially constructed to ensure that all materials are appropriate for your application. Our unique design provides optimal heat through conduction with greater dielectric strength. Backer sales and engineering support will ensure suitability for your application.
AVAILABLE CONSTRUCTION
|
Rated Voltage |
|
|
|
Rated Power |
up to 50 W/ft. |
|
|
Diameter |
0.250in, .0260in (round) 0.25/0.75 in. (oval) |
Backer has the ability to customize different materials & configurations in order to best meet your heating needs.
Heater Wire Insulation (based on W/ft)
PVC
Silicone
Fiberglass Braided
Metal Sheath
Incoloy 800, 840
SS 300
Aluminum
Temperature Sensor (thermistor)
Temerature Control (bi-metal/electromechanical)
Thermal Cut-Off (TCO)
Standard Safety F
Heat shrink end seal – reduced overall thickness
Molded end seal – more robustness and flexibility
